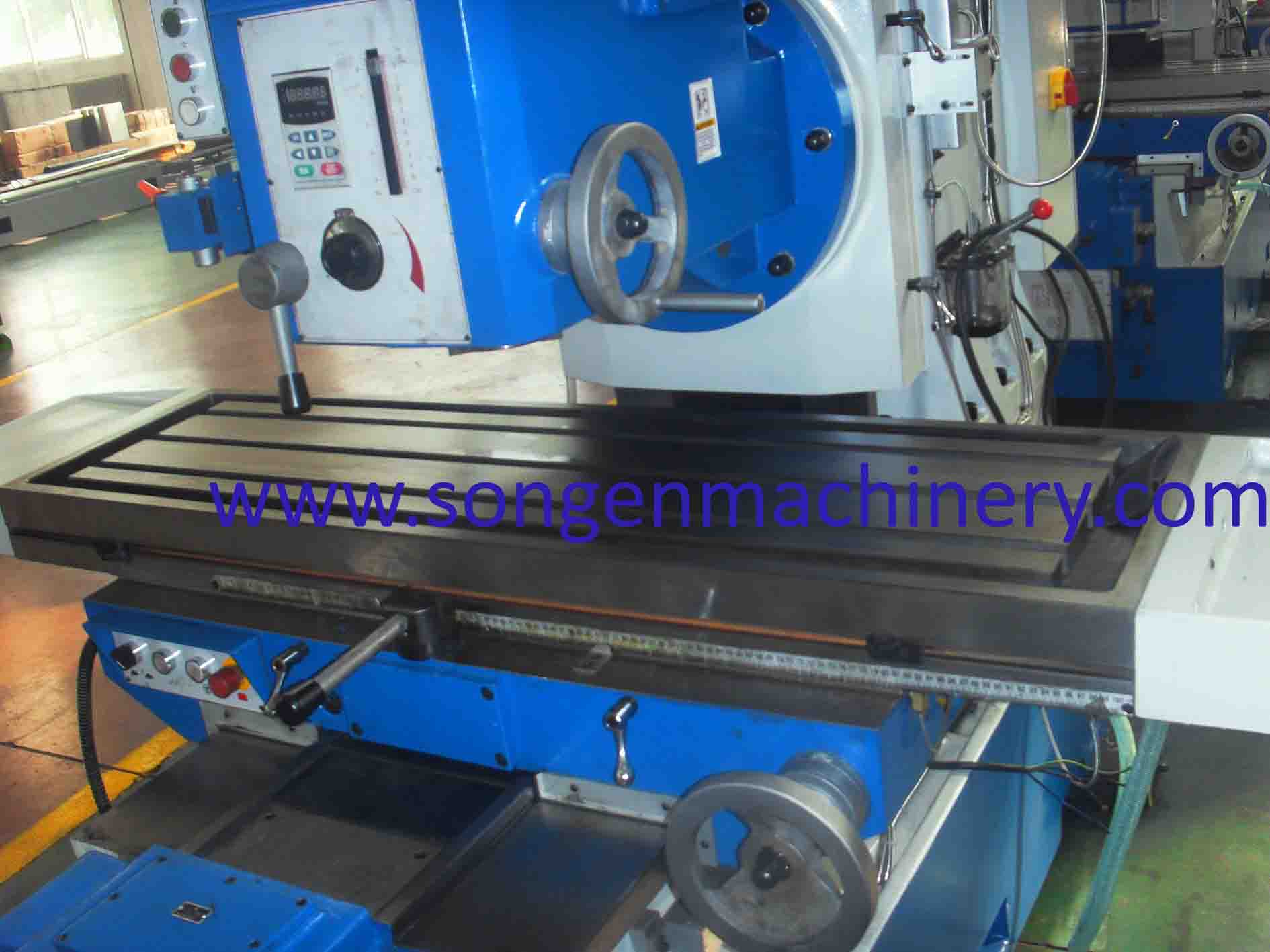

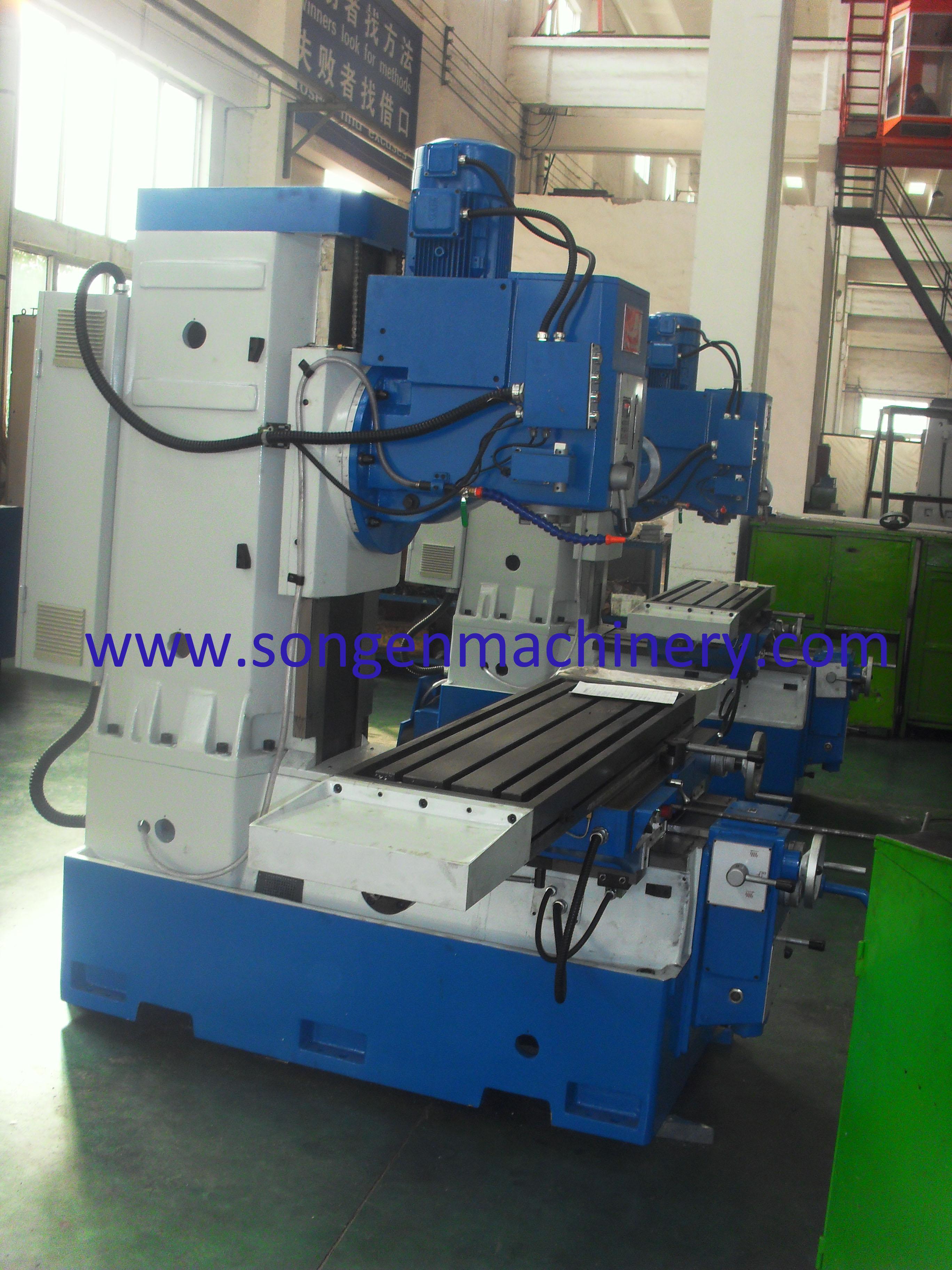

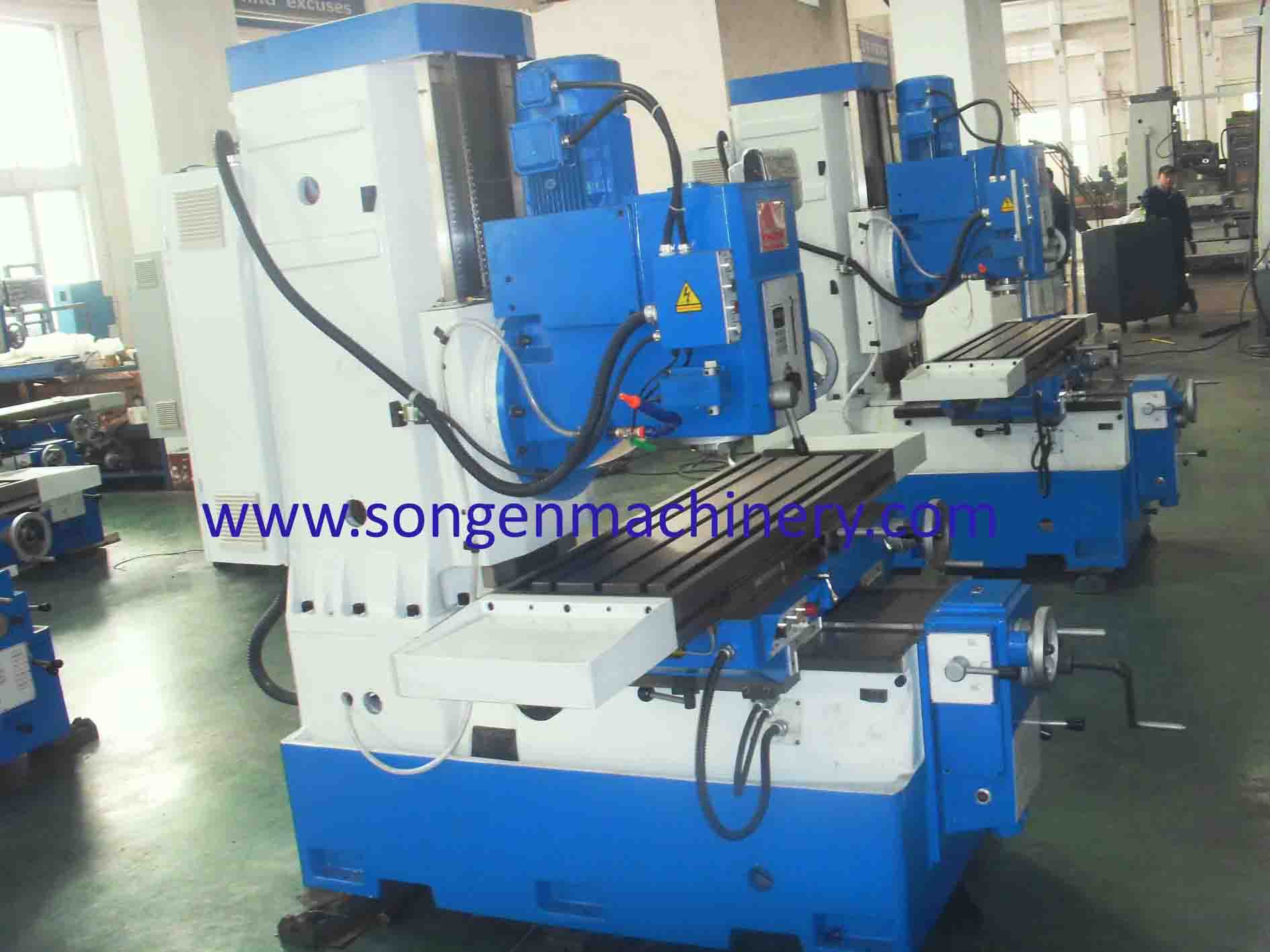

BM1400x400 bed type milling machine

BM1400x400 bed type milling machine

\1. Heavy duty bed type milling machine with table 1400x400mm for machining large & heavy parts;

2. Only cutting head travels in Z-axis and table does not travel in Z-axis. This results in more stability, less vibration, increased machining precision and very high table load capacity;
3. Meehanite c


ast iron frames with extremely wide box guideways;
4. Infinitely variable speed adjustment provided through frequency drive;

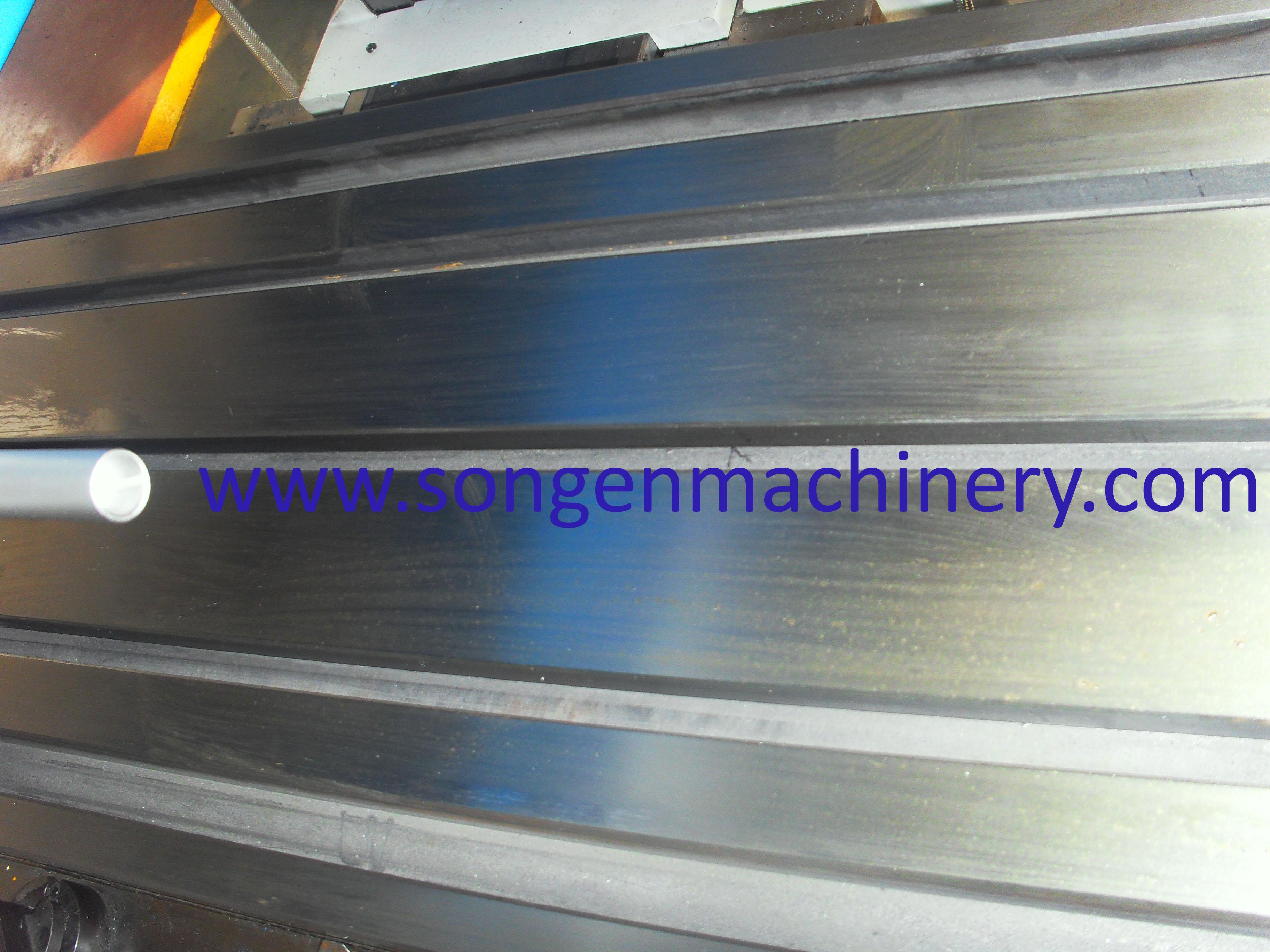

5. Rigid, rectangular flat guide ways ensure consistent accuracy; Hardened and ground guide ways on all axes;
6. Cutting head swivels by ±30°;

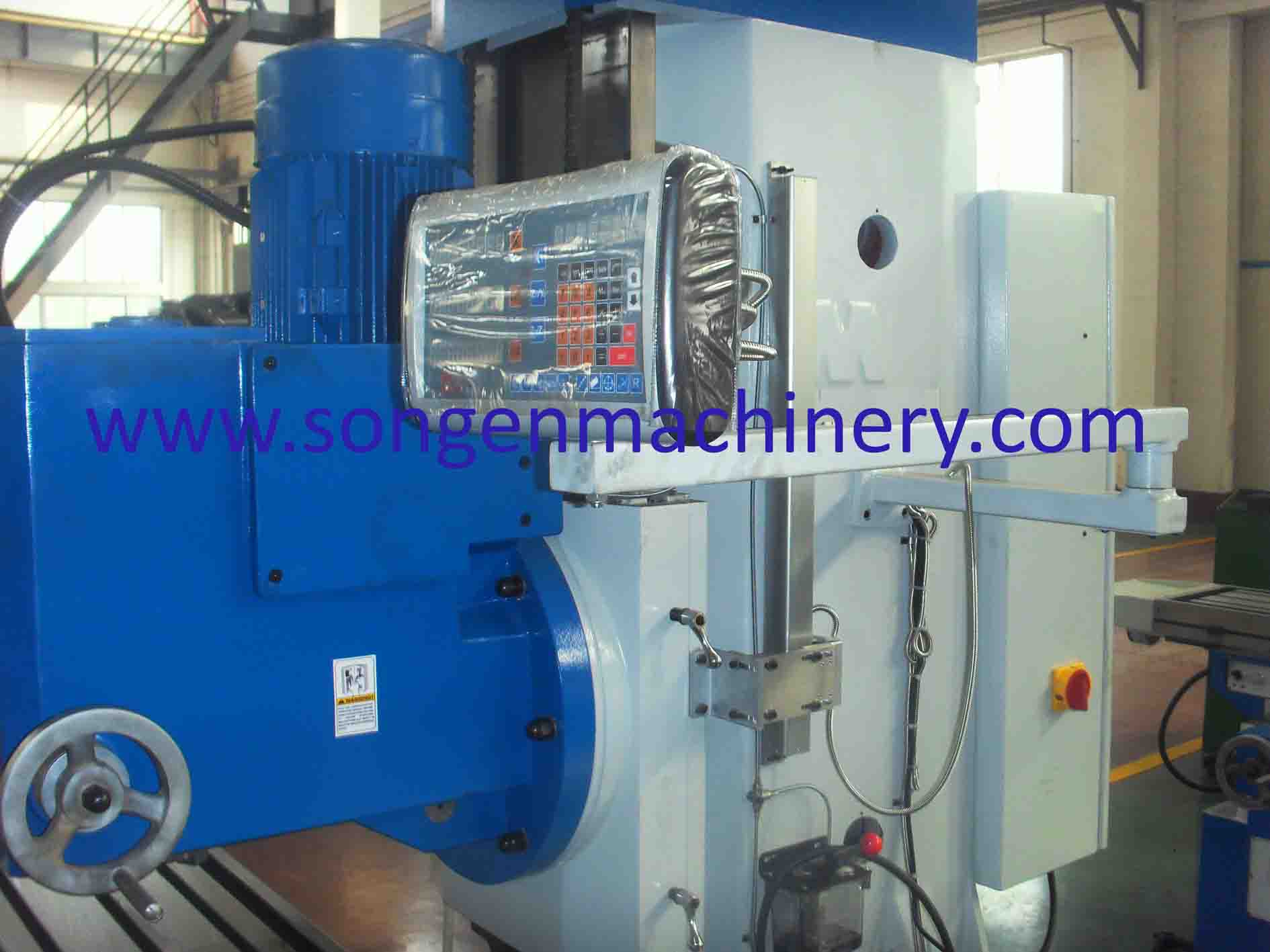

7. Standard 3-axis-position digital readout system is equipped with this milling machine.

 STANDARD ACCESSORIES:

 1) 3-Axis digital readout as position indicator;

 2) Collet chuck with collets of Ø4,5,6,8,10,12,14,16mm;

 3) Reducing sleeves MT#4, MT#3, MT#2;

 4) Milling arbor, diameter 40mm;

 5) Cooling system;

 7) Central lubrication system;

 8) Work lamp;

 9) Operating tools;

 10) Operation manual and parts list.

 OPTIONAL ACCESSORIES:

 1) Milling chucks;

 2) Machine vises;

 3) Reducing sleeves;

 4) Milling cutters;

 5) Dividing heads;

 6) Rotary tables;

 7) Angle plates.






  Specifications      Model BM400X1400
  Working scope

  Longitudinal Travel in X-axis

  800 mm

  Cross Travel in Y-axis

  400 mm

Cutting Head Travel in Z-axis

  500 mm

Table Size

  1400 x 400 mm

  Number / Width / Distance of T-slots

  3 / 18 / 100 mm

  Spindle Nose to Table Distance

  150-650 mm

  Speed Height-Adjustment (Max.)

  1670 mm/Min

  Feeds

  Rapid Traverse Speed in X-Axis

  1670 mm/Min

  Rapid Traverse Speed in Y-Axis

  1670 mm/Min

  Rapid Traverse Speed in Z-Axis

  1670 mm/Min

  Feed Speed in X-axis

  (9) 25-635 mm/Min

  Feed Speed in Y-axis

  (9) 25-635 mm/Min

  Feed Speed in Z-axis

  25-635 mm/Min

  Maximum Load of Table  800 KG

  Vertical Milling Head

  Spindle Speed (Vertical)

  18-1800 RPM, Infinitely Variable Speed

  Spindle Axis to Column

  520 mm

  Spindle Mount (Vertical)

  ISO 50

  Quill Stroke / Throat

  105 / 510 mm

  Head Swivel Range

  ± 30°

  Motors Power

  Main Motor Power

  7.5 KW

  Power of Motor for Z-Axis Drive

  1 HP

  Power of Feed Motor

  1 HP

  Power of Coolant Pump Motor

  0.1 HP

  Machine Dimension and Weight

  Overall Dimensions

  2290x1840x2120 cm

  Weight

  3860 KGs


\


\


\


\


\
