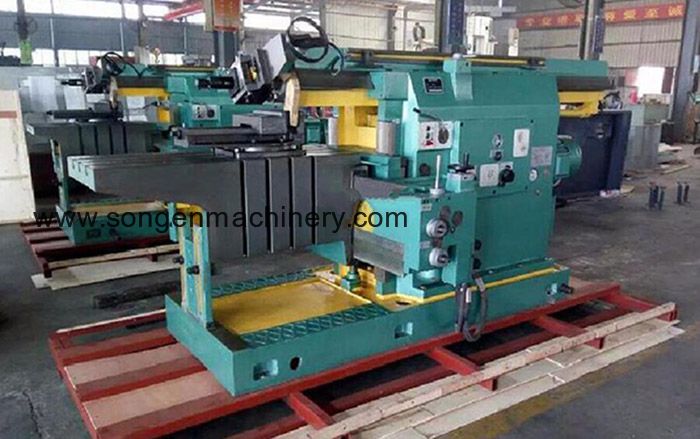

Hydraulic shaping machine, max. shaping length 1500mm
This model P1500Y hydraulic Shaping machine is used to plane various kinds of flat surfaces, and formed surfaces. It is suitable for both single-piece and small-batch production.
The feeding and main Shaping motions of this hydraulic Shaping machine are driven hydraulically with smooth transmission with speeds steplessly adjustable. Provided with a safety device against overload, the hydraulic shaping machine is easy to start and stop with short over-range.
This hydraulic shaping machine can perform heavy-duty and continuous cutting benefiting from its features of high rigidity, high cutting force, high precision of directional conversion, low oil temperature rising, small thermo-deformation and stable machining accuracy.
The table of this hydraulic shaping machine can travel in both the horizontal direction and the vertical direction. Its tool post is equipped with a lifting device. This hydraulic shaping machine is easy to operate with the centralized operation handles.
Model | P1500Y |
Maximum shaping length | 1500 mm |
Maximum horizontal travel of table | 800 mm |
Maximum vertical travel of table | 320 mm |
Maximum distance from ram bottom to table surface | 400 mm |
Maximum cutting force | 28 KN |
Cutting speed of ram | 3-44 m/Minute, Stepless |
Table surface dimension | 1500x500 mm |
Maximum weight load capacity of table | 320 KG |
Maximum vertical travel of tool carrier | 160 mm |
Maximum swivel of tool carrier | ±60 Degrees |
Maximum sectional size of tool shank (WxH) | 30x45 mm |
Rapid traverse of table, Horizontal | 3.0 m/Minute |
Rapid traverse of table, Vertical | 0.15 m/Minute |
Width of T-slots on table | 22 mm |
Main motor | 7.5 KW |
Overall size (LxWxH) | 4850x1580x1830 mm |
Net weight (Approx.) | 8000 KG |
