NC-HT0 Series 6- or 8-Station Horizontal NC Turrets

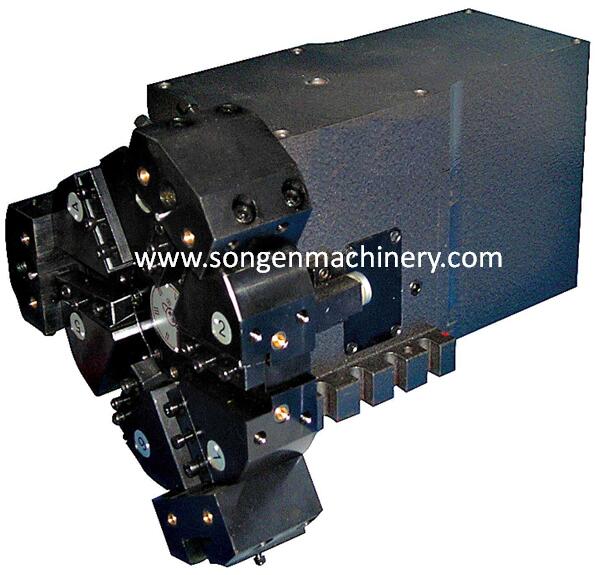

NC-HT0 series NC turrets are an important accessory for the CNC lathe and especially applicable for all-prevading CNC lathes. This NC turret is designed to hold several tools and perform automatically indexing. Automation and high efficiency of operational procedures can be realized.
This NC turret utilizes a face gear coupling as the indexing mechasim. Indexing sequence is mainly controlled by a positioning face gear and encoder. So this NC turret features high accuracy reliability and compact design.
Center height is optional as 63, 80, 100mm. Models NC-HT080 and NC-HT0100 are available with two optional stations numbers - 6 and 8, and Model NC-HT063 has only 6 stations.
| Model code | Center height, mm | Number of positions | Time of changing tool, Sec | Max. clamping force, N | Relibility of working, Hours | Motor parameters | Net weight (c/w 3 tool holders), Kgs | Gross weight (c/w 3 tool holders), Kgs | Packing size (LXWXH), cm |
| NC-HT063X6 | 63 | 6 | 3 | 20000 | >3000 | 120 W, 1400 RPM | 50 | 59 | 43X35X39 |
| NC-HT0080X6 | 80 | 6 | 3 | 25000 | >3000 | 120 W, 1400 RPM | 65 | 78 | 50X45X45 |
| NC-HT080X8 | 80 | 8 | 3 | 25000 | >3000 | 120 W, 1400 RPM | 73 | 86 | 50X45X45 |
| NC-HT0100X6 | 100 | 6 | 3 | 25000 | >3000 | 120 W, 1400 RPM | 113 | 135 | 58X56X56 |
| NC-HT0100X8 | 100 | 8 | 2.85 | 25000 | >3000 | 3 N.M torque motor | 113 | 137 | 58X56X56 |
Accuracy measurements
| No. | Item | Accuracy, mm |
| 1 | Parallelism of tool datum plane to bottom surface of the turret | 0.100 |
| 2 | Repeatability accuracy | 0.005 |
| 3 | Maximum elastic deformation in vertical plane under test torques F, (for NC-HT063: F=800N.M; for NC-HT080: F=1000N.M; for NC-HT0100: F=1500N.M) | 0.050 |
| 4 | Maximum residual deformation in vertical plane under test torques F, (for NC-HT063: F=800N.M; for NC-HT080: F=1000N.M; for NC-HT0100: F=1500N.M) | 0.015 |
| 5 | Maximum elastic deformation in horizontal plane under test torques F1, (for NC-HT063: F1=400N.M; for NC-HT080: F1=500N.M; for NC-HT0100: F1=800N.M) | 0.050 |
| 6 | Maximum residual deformation in horizontal plane under test torques F1, (for NC-HT063: F1=400N.M; for NC-HT080: F1=500N.M; for NC-HT0100: F1=800N.M) | 0.015 |

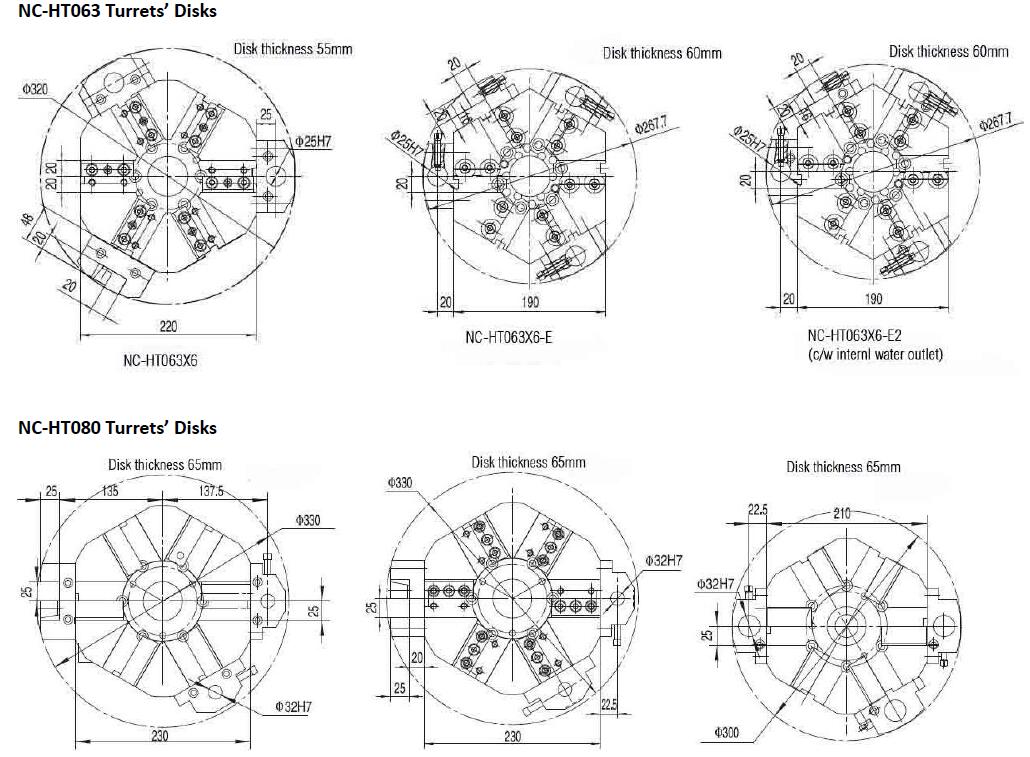

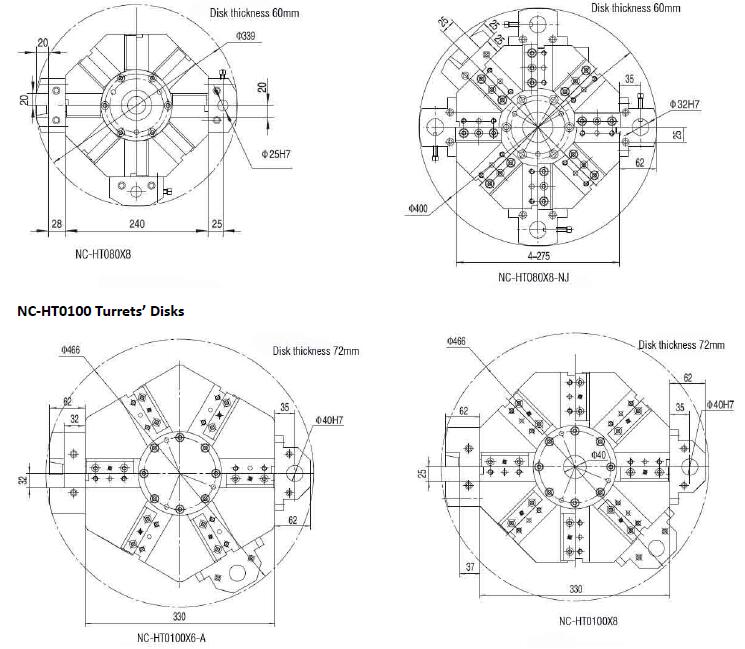

| Model | A | B | C | D | E | F | G | H | H1 | I |
| NC-HT063X6 | 58 | 30 | 8 | 11 | 18 | 130 | 348.5 | 63 | 195 | 165 |
| NC-HT080X6 NC-HT080X8 | 70 | 30 | 8 | 11 | 18 | 137 | 364 | 80 | 214 | 195 |
| NC-HT0100X6 NC-HT0100X8 | 80 | 40 | 9 | 13 | 25 | 145 | 381.5 | 100 | 259 | 225 |
| Model | J | K | L | M | N | O | P | Q | R | S |
| NC-HT063X6 | 185 | 19 | 30 | 145 | 123 | / | 11 | 6-M8 | 139 | 82 |
| NC-HT080X6 NC-HT080X8 | 220 | 11 | 115 | 170 | 140 | 64 | 11 (counter bored 18) | 6-M8 | 169 | 106 |
| NC-HT0100X6 NC-HT0100X8 | 250 | 20 | 110 | 200 | 160 | 70 | 11 (counter bored 18) | 8-M8 | 199 | 125 |
