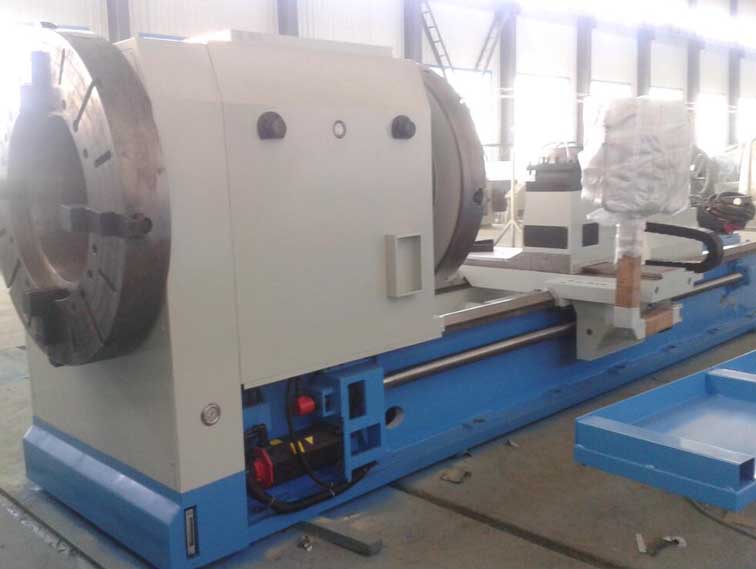

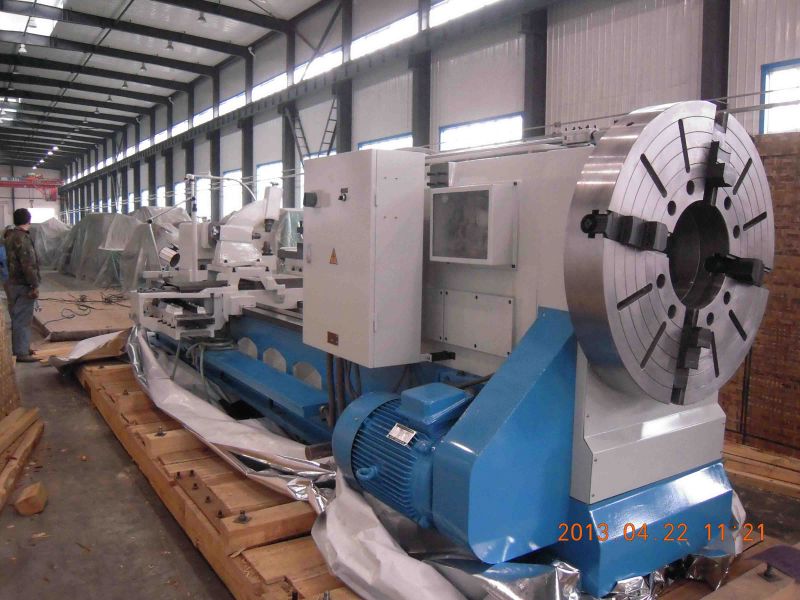

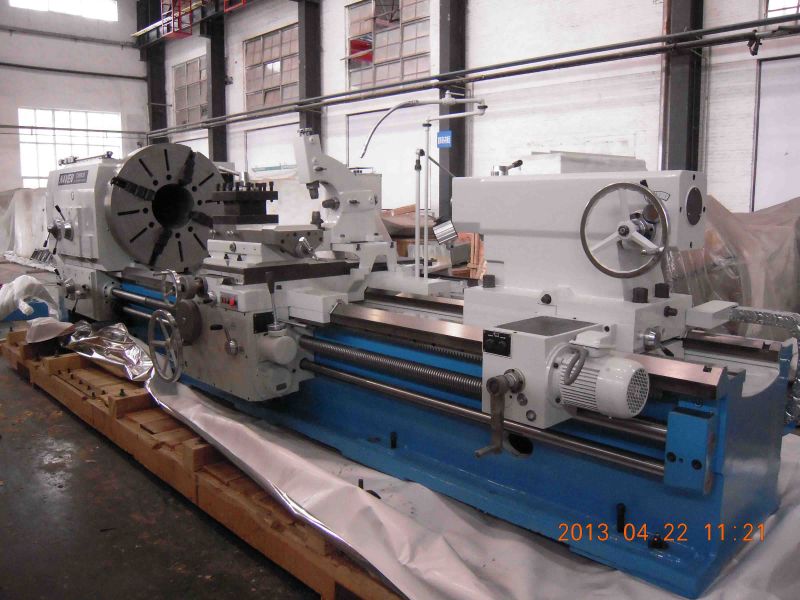

OCL360 Engine type oil country lathe, spindle bore 360mm
OCL360 Engine type oil country lathe, spindle bore 360mm
| Specifications | Model OCL360X3000, Engine type |
| Max. Swing over bed | 1000 mm |
| Max. Swing over carriage | 640 mm |
| Distance between two centers | 3000 mm |
| Width of bed | 755 mm |
| Diameter of spindle inner hole | 360 mm |
| Min. Clamped diameter of chuck | 240 mm |
| Range of spindle speed | 6.3 to 315 r. P. M. With 18 steps |
| Main motor power | 22 kw |
| Kind of metric thread and pitch range | 56 kinds 1 to 120 mm |
| Kind of whitworth thread and range | 37 kinds 30 to 1.125 teeth/in. |
| Kind of modular thread and range | 46 kinds 0.5 to 60 mm |
| Kind of radial thread and range | 46 kinds 0.5 to 60 d. P. |
| Toolpost positions | 4-way |
| Tool section ( H × W ) | 45× 45 mm |
| Max. Travel of toolpost | 300 mm |
| Max. Travel of cross slide | 695 mm |
| Rapid traverse of saddle | 3740 mm/min |
| Rapid traverse of cross slide | 1870 mm/min |
| Rapid traverse of topslide | 935 mm/min |
| Diameter of tailstock sleeve | 160 mm |
| Travel of tailstock sleeve | 300 mm |
| Taper for taper hole of tailstock sleeve | Metric No. 80 |
| Machining length of taper scale | 300 mm taper turning, ± 1: 4 |
| Net dimension of machine | 6100× 2045× 1915mm |
| Net weight of machine | 12500kg |
| Note: not including weight of chuck and steady rest and any accessories. |
| Accessories supplied with machine: |
| 4-jaw manual chuck with steel body, dia. Of 1000 mm, 2 sets |
| Steady rest (fixed steady), range 50 to 590 mm with bearing type, 1 set |
| Follow rest (traveling steady with tips), range 50 to 220 mm 1 set |
| Cooling system, 1 set |
| Lighting device, 1 set |
| Taper turning device, length 300 mm, 1 set |
| Living center, 1 set |
| Dead center, 1 piece |
| Center sleeve, 1piece |
| Set of machine operating tools |
