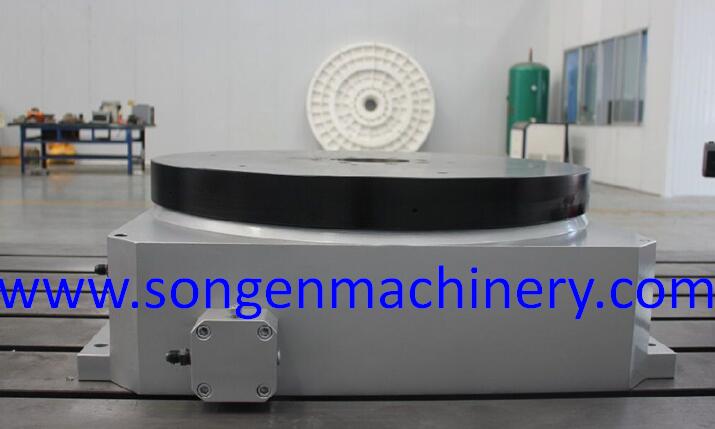

CNC Hydraulic equal indexing rotary tables, table diameters 800, 1000mm

Hydraulic oil driving to perform loosing, indexing and clamping;
Integrated with the machine’s CNC system to index 4 equal divisions with 90 degrees each. Options as 6 equal divisions with 60 degrees each, and 8 equal divisions with 45 degrees each;
Super precision Hirth couplings work as the key indexing component, offering indexing accuracy as ±2”;
Can rotate clockwise or counter-clockwise;

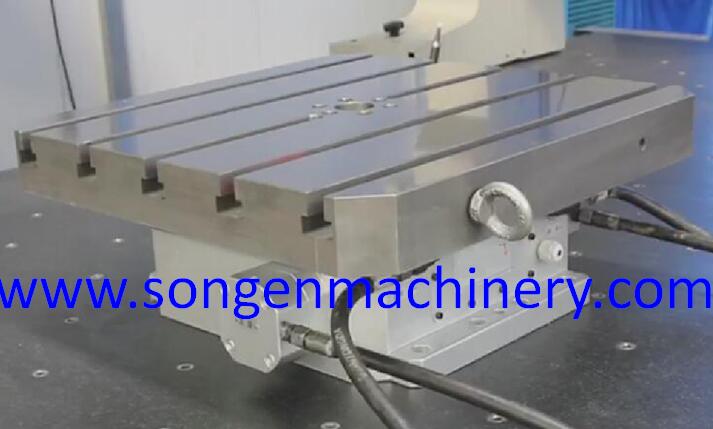

On requests, turntable can be rectangles with sizes defined by you;
Flexible indexing motions, compact structure, high indexing accuracy, high clamping force and simple to control are the advantages.

No.	Specifications	CNC-RT800H	CNC-RT1000H
1	Turntable diameter, mm	800	1000
2	Center hole diameter, mm	150H7	150H7
3	Thru-hole diameter, mm	60	60
4	Unit indexing division, Degrees	90, options as 60, 45	90, options as 60, 45
5	Number of equal divisions	4, options as 6, 8	4, options as 6, 8
6	90-Degree / 60-Degree indexing time, Seconds	3.8 / 3.2	4 / 3.6
7	Allowable cutting force at turntable center, N	42000	50000
8	Maximum hydraulic pressure, MPa	5	5
9	Maximum overturning torque at 4MPa pressure, N.M	23500	50000
10	Maximum tangential torque at 4MPa pressure, N.M	41000	67000
11	Weight loading capacity, KG	2400	4000
12	Maximum rotary inertia, KGM2	350	600
13	Maximum allowable torque caused by laterality, N.M	1800	3000
14	Rotation direction	Clockwise and counterclockwise	Clockwise and counterclockwise
15	Indexing accuracy, Seconds	±2	±2
16	Repeatability, Seconds	±2	±2
17	Turntable top surface end run-out accuracy, mm	≤0.02	≤0.02
18	Turntable spindle radial run-out accuracy, mm	≤0.01	≤0.01
19	Turntable flatness across the diameter 800mm, mm	≤0.02	≤0.02
