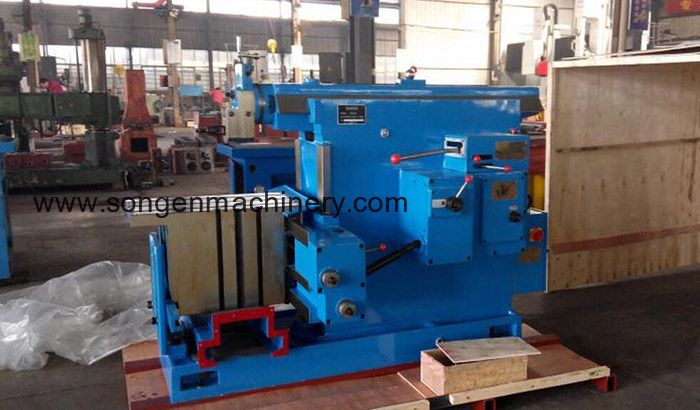

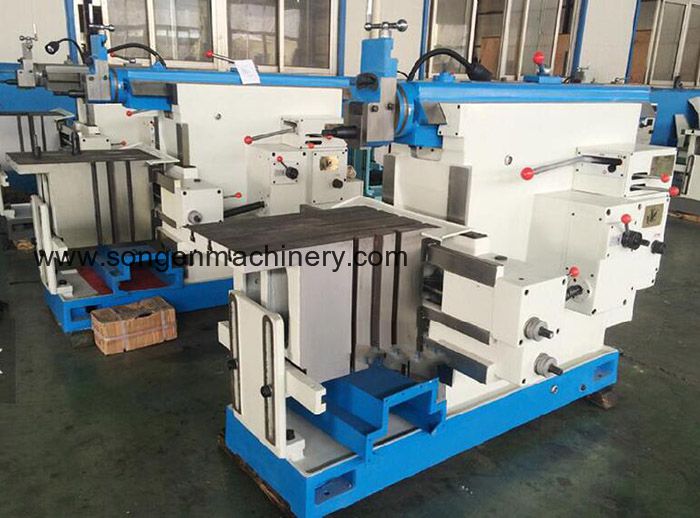

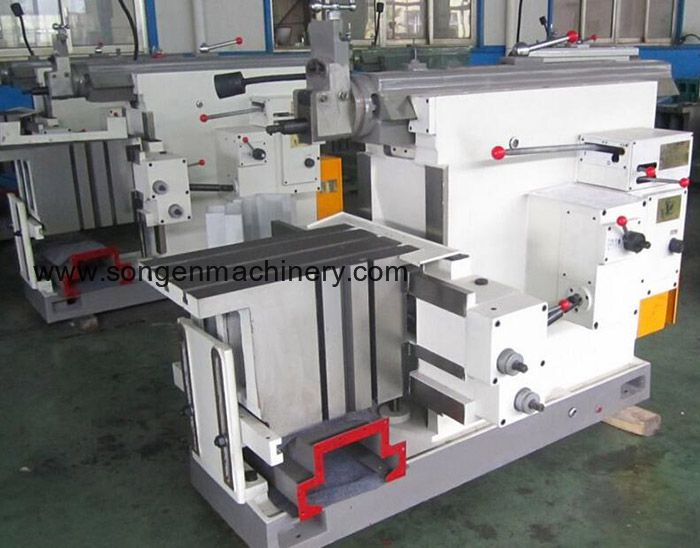

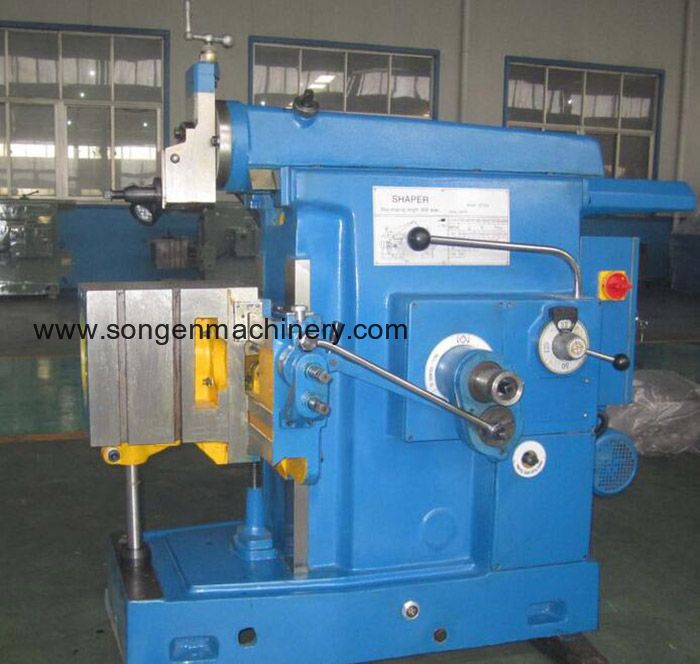

Shaping machine, planing length 630, 660, 850, 1000mm
Shaping machine, planing length 630, 660, 850, 1000mm


  1. These mechanical shapers are widely used to plane the flat surfaces, the shaped surfaces and the grooves or slot on medium or small size workpieces in the single-piece or small-batch production;
  2. The toolpost on these shapers can be swiveled and set at a desired angle and can be fed by hand;

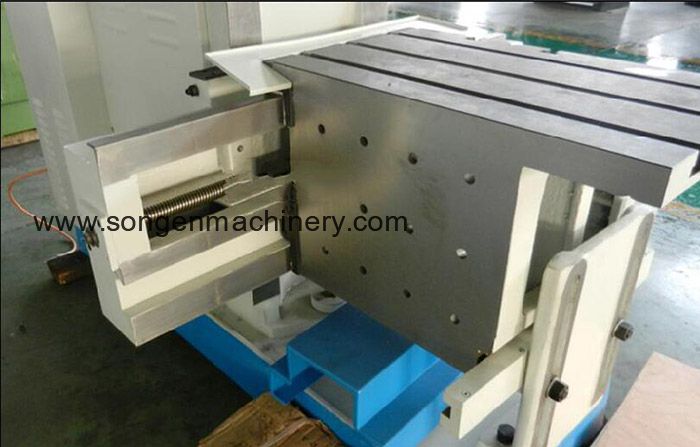

  3. The worktable of these shapers can be swiveled left/right at a desired angle so that the tilting surfaces can be planed. It can perform rapid traverses in both the cross direction and the vertical direction;
  4. Overload protection in the feeds is provided on these planers during the feeding operations. In case of misoperations, being affected by external forces or overloaded in the cut, the feed will automatically slip to protect the components in these shapers against damages;
  5. Pressured lubrication from the oil pump lubricates all the guidways and gear sets on these planers;

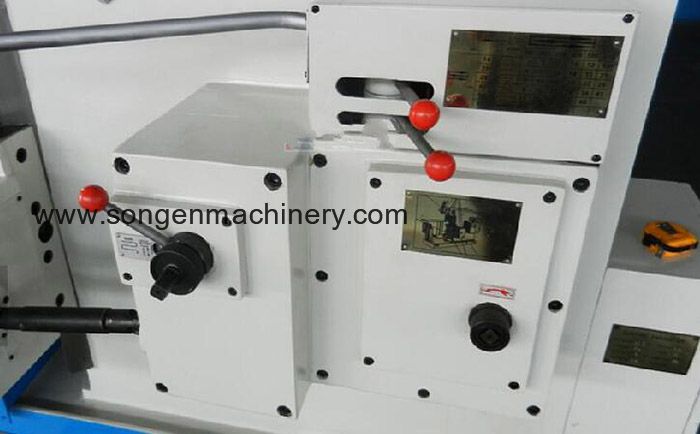

  6. The clutch and the brake on these planers allows the speed-shifting, the machine startup/stop to be performed without the need of shutting off the power supply for the machine. The brake makes the interia stroke of the ram to be less than 10mm after the clutch is disengaged.


Model MP630  MP660  MP850  MP1000
 Maximum planing length, mm 630 660 850 1000
 Maximum distance from ram bottom to worktable top surface, mm 385 385 400 400
 Maximum horizontal travel of worktable, mm 630 630 710 800
 Maximum vertical travel of worktable, mm 360 360 360 380
 Size of worktable top surface, mm 630x400 660x400 800x450 1000x500
 Travel of tool post, mm 120 120 120 120
 Number of ram strokes per minute 14,20,28,40,56,80 14,20,28,40,56,80 17,24,35,50,70,100 15,20,29,42,58,83
 Range of power feeds of worktable, mm Horizontal 0.2 - 2.5, 12 Steps 0.2 - 2.5, 12 Steps  0.25 - 3, 12 Steps  0.3 - 3, 10 Steps
 Vertical 0.08 - 1, 12 Steps 0.08 - 1, 12 Steps  0.12 - 1.5, 12 Steps  0.15 - 1.5, 8 Steps
 Main motor power, KW 3 3 5.5 7.5
 Machine size, mm 2342x1225x1480 2357x1225x1480  2950x1325x1693 3640x1575x1780
 Net Weight, KG 1840 1920 3050 5140
