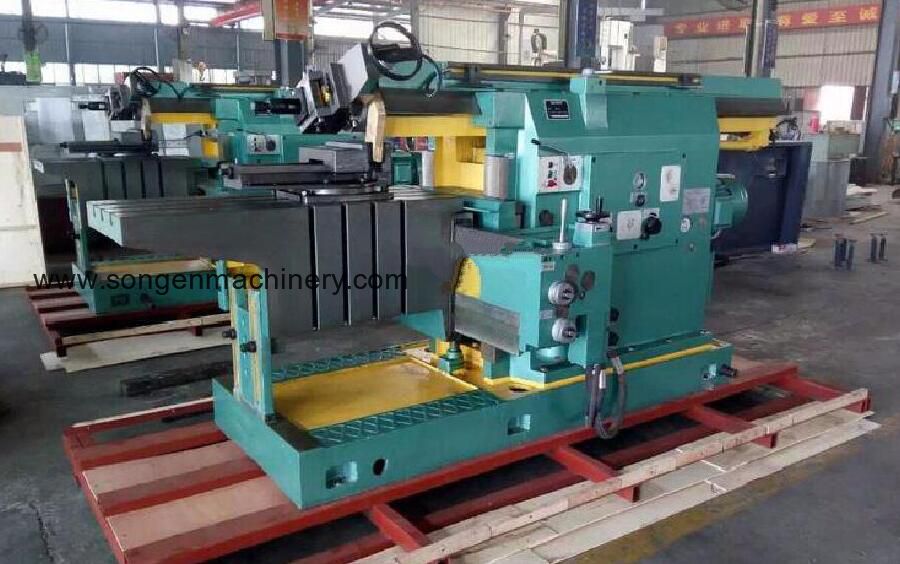

Hydraulic shaping machine, max. shaping length 1000, 1250mm

This model P1000Y, P1250Y hydraulic shaping machines are used to shape various kinds of flat surfaces and shaped surfaces. They are suitable for the single-piece production and the small-batch production.

The feeding and main shaping motions of this hydraulic shaping machine are powered by hydraulic force with smooth transmission. Their speeds are steplessly adjustable. Provided with a safety device against overload, the hydraulic shaping machine is easy to start or stop with short over-range.

This hydraulic shaping machine can perform heavy-duty and continuous cutting benefiting from its features of high rigidity, high cutting force, high precision of directional conversion, low temperature rising, small thermo-deformation and stable machining accuracy.

The table of this hydraulic shaping machine can travel in both the horizontal direction and the vertical direction. Its tool post is equipped with a lifting device. This machine is easy to operated with centralized handles.

Performance accuracy:

1. Flatness of shaped flat surface on tested workpiece: 0.03mm / 500x200mm;
2. Parallelism of shaped surface on tested workpiece to datum reference: 0.04mm / 500 x 200mm;
3. Parallelism of shaped side surface to its opposite shaped side surface on tested workpiece: 0.06mm / 500x100mm;
4. Perpendicularity of shaped side surface to datum reference on tested workpiece: 0.03mm / 100mm;
5. Shaped surface roughness: Ra6.3 μm.
